Product Description

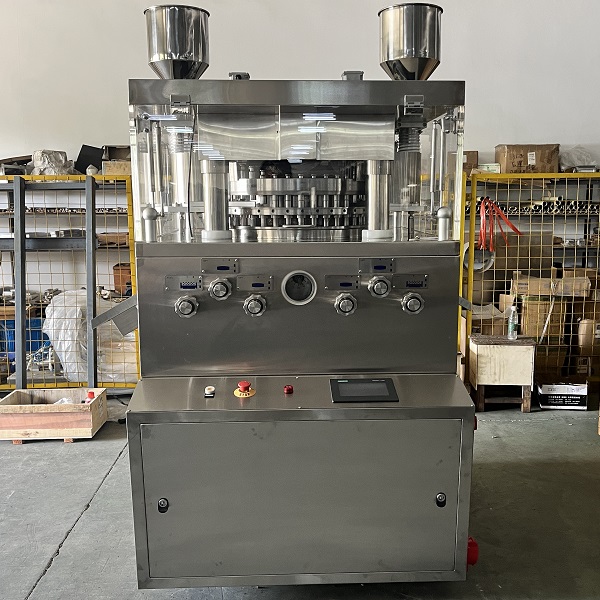

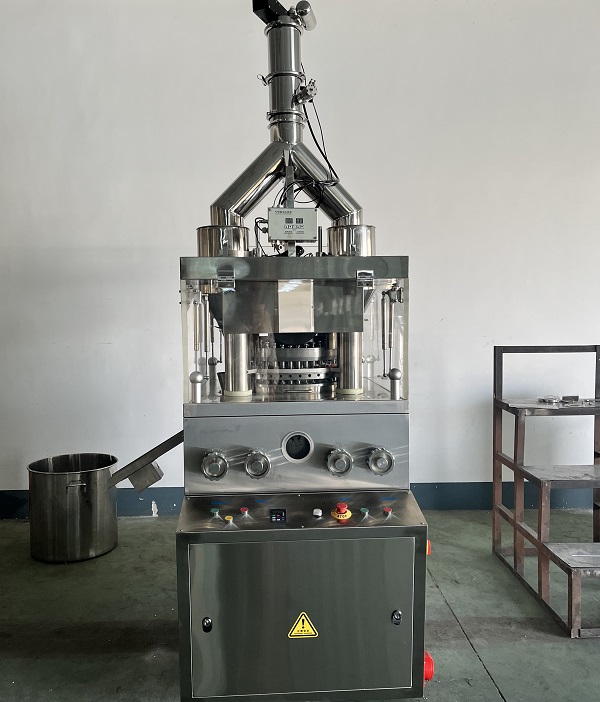

This machine is a single-press automatic continuous rotary tablet press machine, it can press various granular, crystalline or fluid powders into tablets. It does not require the addition of auxiliary materials, and the tablet shape and size can be customized according to customer needs.
Application
It can be widely used in fertilizer, chemical, pharmaceutical and food industries, etc.
Machine features
1. The outer cover is made of enclosed 304 stainless steel, which can maintain the surface gloss and prevent cross contamination;
2. The transparent protective cover can clearly see the machine operation status, and it can be fully opened for easy cleaning and maintenance;
3. The transmission system is enclosed in the oil tank under the machine body. It is a safe and independent component that will not contaminate each other. The transmission shaft is immersed in the oil pool and is fully lubricated, reducing noise and wear;
4. It equips with a dust collection device, which can absorb the flying dust in the pressing room.
Technical Data
|
Model |
SFPW-15 |
SFPW-25 |
SFPW-29 |
SFPW-33 |
SFPW-41 |
|
Number of dies |
15 |
25 |
29 |
33 |
41 |
|
Max pressure(KN) |
150 |
100 |
80 |
80 |
80 |
|
Max Diameter(mm) |
45 |
25 |
25 |
20 |
15 |
|
Max filling depth(mm) |
25 |
20 |
15 |
15 |
15 |
|
Max thickness(mm) |
12 |
9 |
6 |
6 |
6 |
|
Max RPM of dies |
18 |
30 |
35 |
35 |
35 |
|
Max capacity(pcs/h) |
32000 |
90000 |
120000 |
147000 |
170000 |
|
Power(kw) |
11 |
5.5 |
4 |
4 |
4 |
Note: the parameters above only for reference, will revise accordingly from different materials and projects.
