Product Description

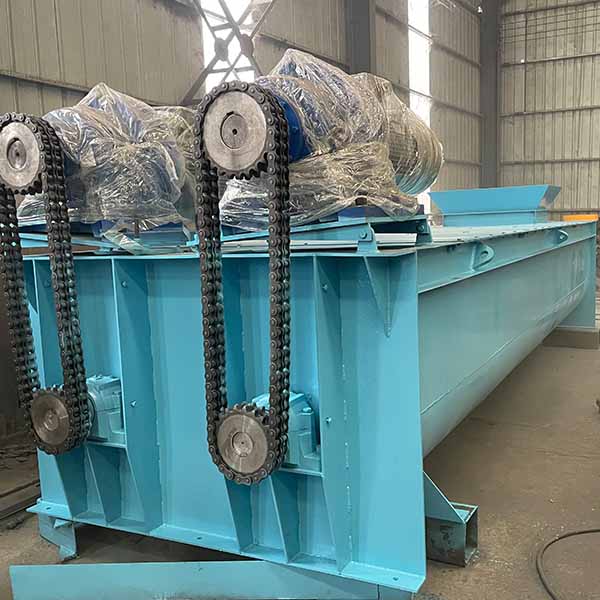

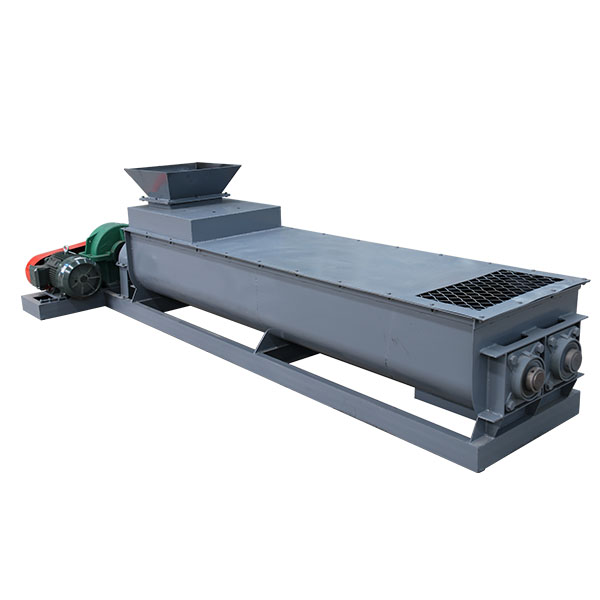

Double shaft blender machine, also called twin shaft mixer twin shaft blender, is a device that uses two sets of shafts with spiral blades to rotate relative to each other, and adds water to wet and stir the powder material, achieving controllable humidity. This equipment is mainly suitable for humidifying and mixing raw materials in the fertilizer industry. Stir the material thoroughly. it adopts a cycloidal pinwheel reducer or a motor driven by a belt wheel to drive the operation of the spiral shaft, which operates smoothly and has low noise. The material flow direction is from the top of the humidification conveyor to the bottom, and the material flow direction is reasonable, making it easy to transport.
Application
This equipment is mainly suitable for humidifying and mixing raw materials in the fertilizer industry.
Technical Data
| Model | Power/kw | Capacity/tph | RPM | Size/mm |
| SFD400 | 11kw | 10-20 | 52 | 4113*1300*1053 |
| SFD500 | 22kw | 20-30 | 52 | 5180*1500*1100 |
| SFD600 | 37kw | 30-50 | 52 | 5600*1686*1390 |
| SFD1000 | 75kw | 60-80 | 50 | 6685*3050*1350 |
Note: the parameters above only for reference, will revise accordingly from different materials and projects.
