Product Description

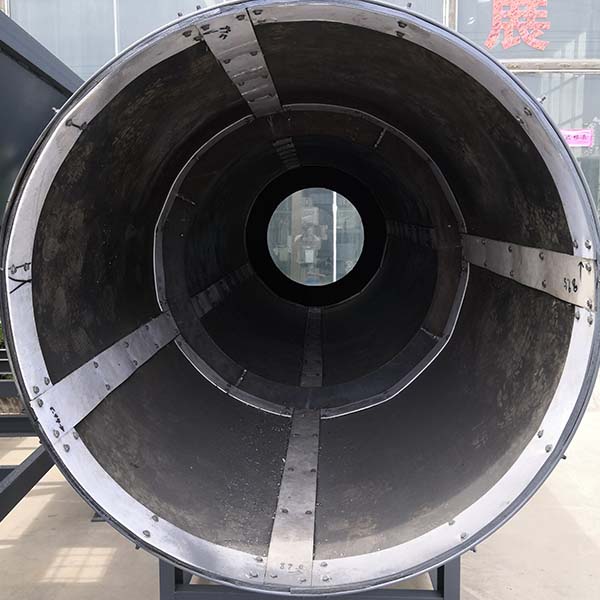

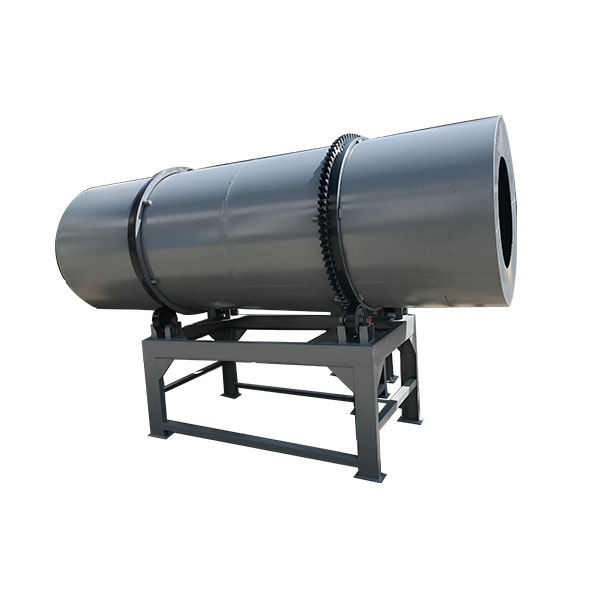

Fertilizer drum coating machine which is also called rotary drum coating machine, is a device used to apply a protective film to fertilizer particles. It is composed of a screw conveyor, a mixing tank, an oil pump, a main engine, etc., and can use powder or liquid as the coating material. The coating of fertilizer particles can improve the fluidity of the fertilizer, prevent clumping, increase luster, and waterproof properties.

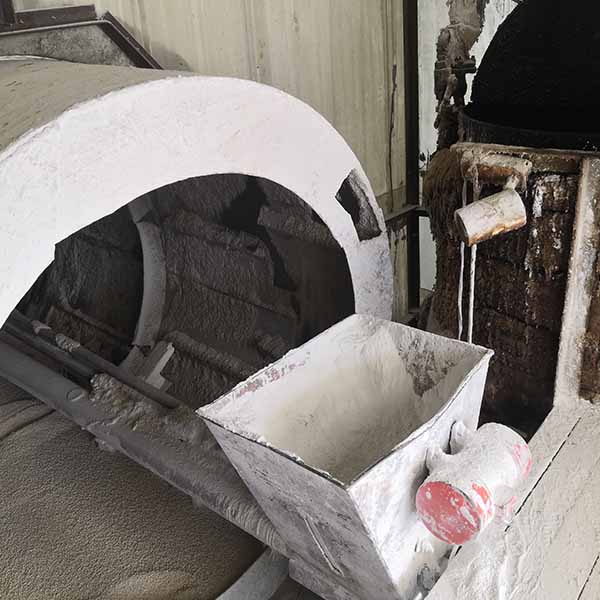

The fertilizer particles are fed into the rotary coating machine through a screw conveyor, and then the coating material is evenly sprayed on the surface of the particles through a dry powder compactor or liquid spraying system. After getting drunk, the coating material is dried and cooled by hot air to solidify on the particles, forming a uniform coating layer.
Technical Data
| Model | Drum Dia.(mm) | DrumAngle | Power（kw） | Capacity(tph) | RPM |
| SF1030 | 1000 | 2-4 | 5.5 | 1-4 | 17 |
| SF1240 | 1200 | 2-4 | 7.5 | 5-8 | 15 |
| SF1560 | 1500 | 2-4 | 11 | 9-15 | 12 |
| SF1870 | 1800 | 2-4 | 15 | 16-22 | 12 |
| SF2080 | 2000 | 2-4 | 18.5 | 23-30 | 10 |
Note: the parameters above only for reference, will revise accordingly from different materials and projects.
Advantage
- Improve the ball forming strength and appearance quality of fertilizer particles, making the fertilizer more beautiful and uniform.
- Prevent the agglomeration and pulverization of fertilizer particles, extend the shelf life and service life of fertilizers.
- Increase the nutritional content and water solubility of fertilizer particles, improve the effectiveness and utilization rate of fertilizers.
- Reduce the corrosiveness and wear of fertilizer particles, reduce energy consumption and maintenance costs of fertilizers.
