Product Description

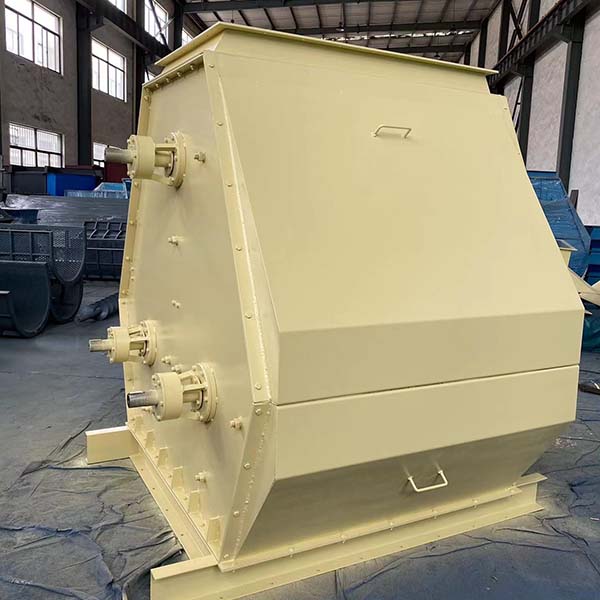

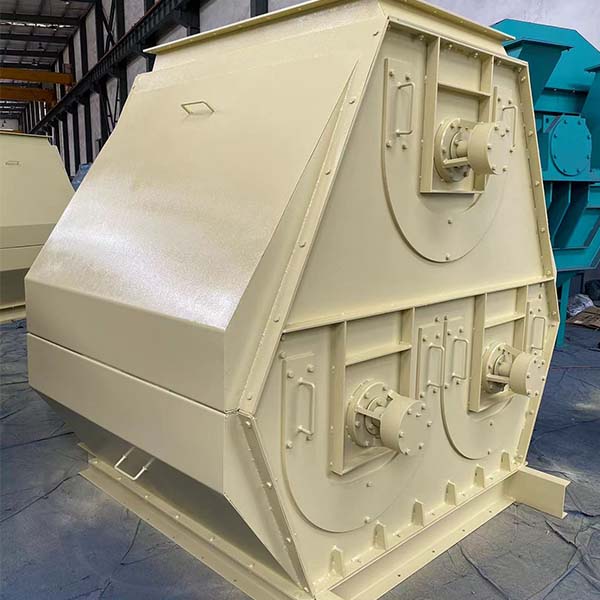

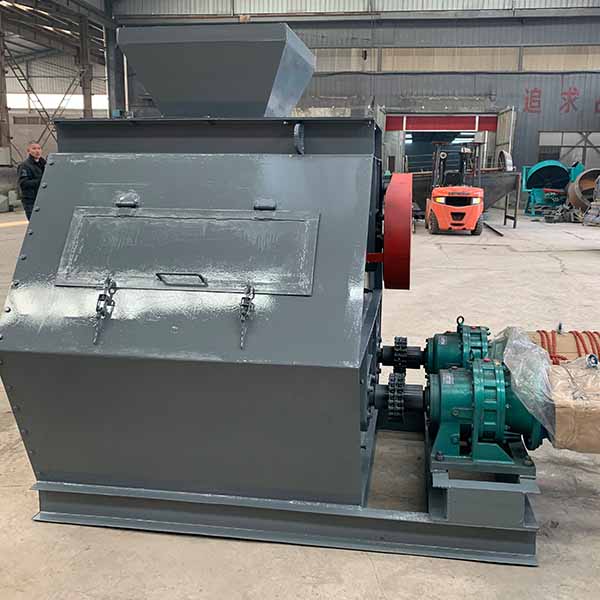

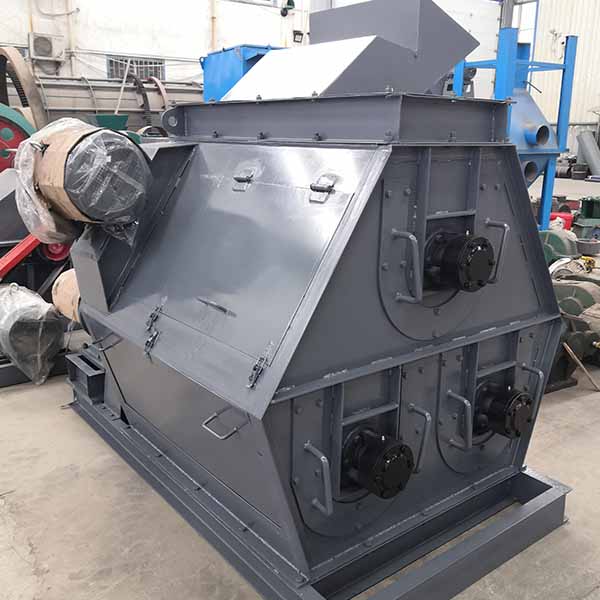

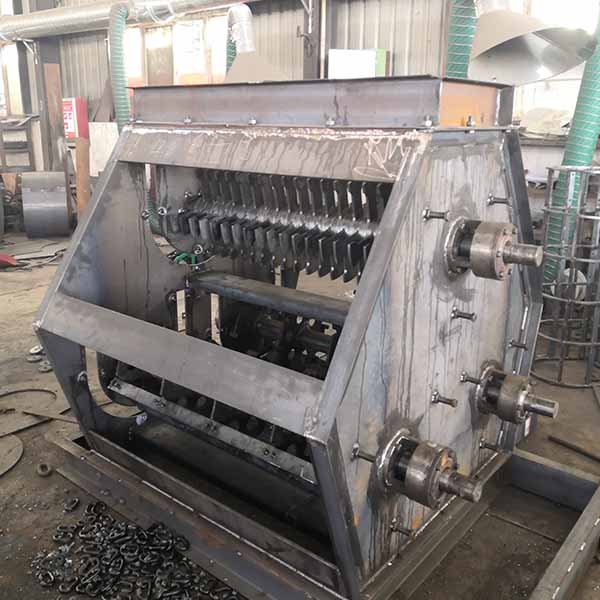

The shaping machine consists of a crushing chamber consisting of a crushing box, a crushing shaft, rotating blades, and a screen. The motor drives the main shaft to crush the block shaped materials pressed by the rolling mill into granular materials. The crusher is divided into two stages, consisting of three crushing chambers: the first stage is a crushing chamber, mainly used to preliminarily crush the block shaped materials pressed by the rolling mill into large particle materials;The second stage consists of two crushing chambers, which further crush the large particle materials obtained from the first stage to obtain qualified small materials; The crushing is divided into two levels, which can crush the block shaped material pressed by the rolling sheet twice, and there are three crushing chambers, greatly increasing the crushing area, effectively improving the crushing efficiency and yield.
Technical Data
|
Model |
SFLJ500 |
SFLJ600 |
SFLJ750 |
SFLJ800 |
|
Power |
7.5 |
11 |
11-6 |
15-6 |
|
Feeding speed(r/m) |
63-143 |
63 |
63 |
63 |
|
Size(m) |
1.6*1.8*2.35 |
2.1*2.1*3.14 |
2.3*2.1*3.07 |
2.5*2.1*3.25 |
