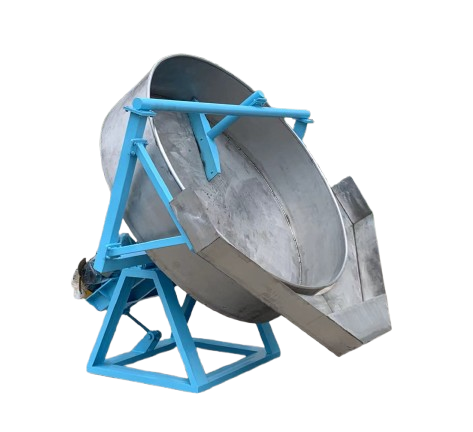

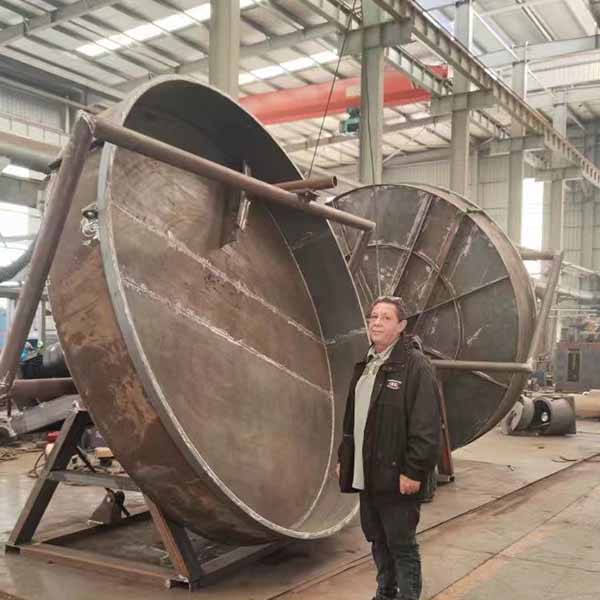

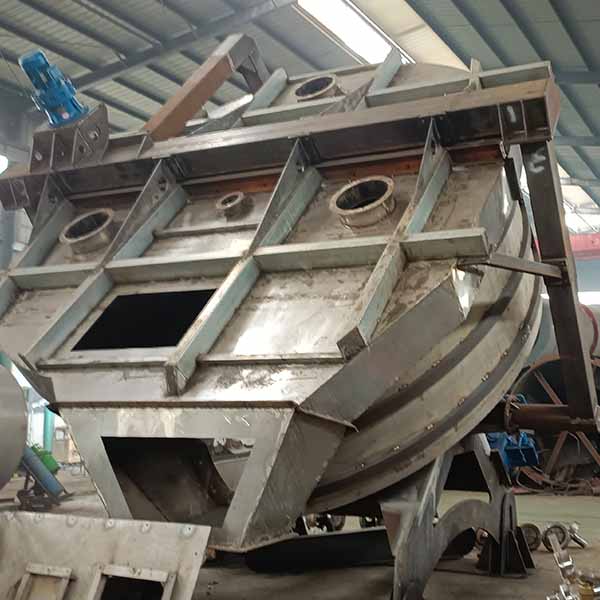

Disc pan pelletizer agglomeration machine

Product Description

Pan granulation machine, also called disc granulator or disc pellet machine, are the main equipments to convert powdered materials into round granules or pellets.also, it is the key granulation equipment in the compound fertilizer and organic fertilizer production

Disc granulation machine utilizes a non-pressure (tumble growth) method to agglomerate and work by tumbling material on a rotating disc, with a adhesives and feed stock being continuously added. The adhesives causes the powder fines (or seed pellets, when utilizing a pre-conditioning step) to become sticky and pick up additional fines as the material tumbles against itself. This makes a “growing” action referred to as coalescence. Once the granules have reached the required size, they discharge from the rotating pay via centrifugal force.

Working Principle

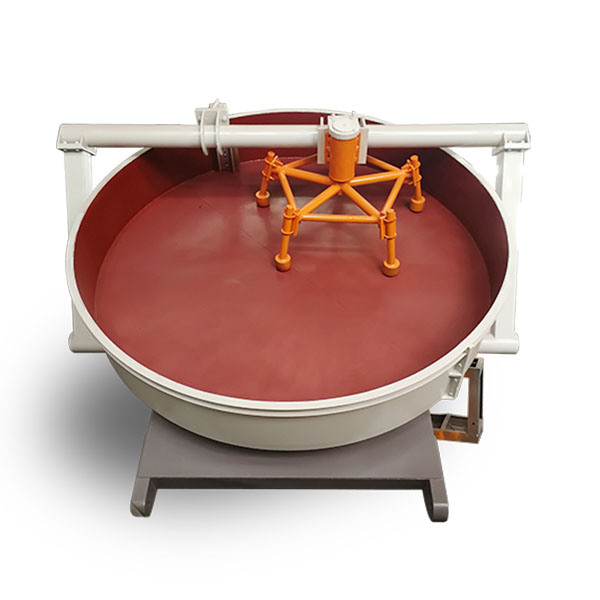

The belt pulley and belt are driven by the chief motor, and the pinion is driven by the gearbox. The pinion and the big gear fixed at the bottom of the plate are engaged with each other to work in the same direction. The big gear is installed on the main shaft fixed on the rack adjustment plate through a special and reasonable design to support the work of the entire pan disk (this machine is used in conjunction with the spray). After the materials enter the granulation disk, they are rotated continuously by the granulation disk and the spray device, The material is uniformly bonded together to form round particles. An automatic cleaning device is designed in the upper part of the granulation plate of the machine to prevent material from sticking to the wall, greatly improving the service life of the machine. With the continuous rotation of the motor and the continuous entry of materials, batch production can be achieved, which meets the needs of continuous operation.

Technical Data

Note: the parameters above only for reference, will revise accordingly from different materials and projects.
