Product Description

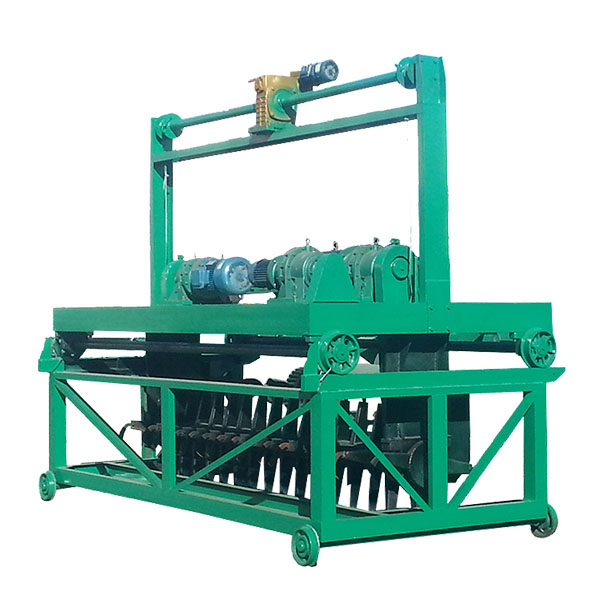

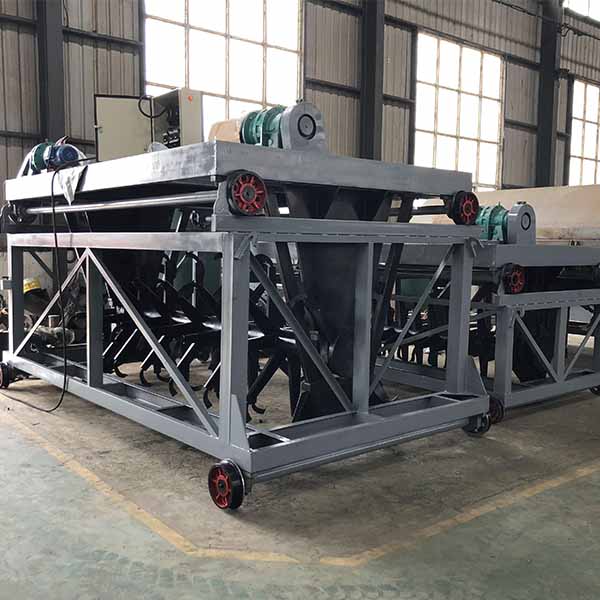

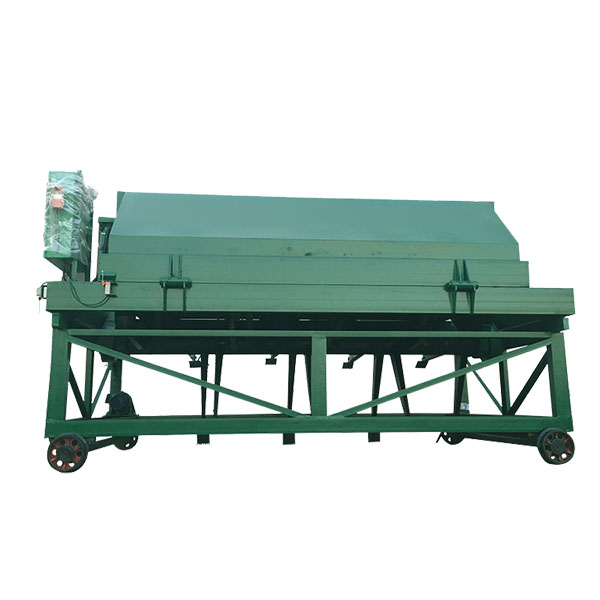

Hydraulic grooved compost turner machine, which also called compost fermentation turning machine, is one of the main machines for organic fertilizer fermentation, suitable for slot type fermentation.Used to ferment and flip organic waste such as animal manure, sludge waste, sludge from sugar factories, residue cake, and straw sawdust, it is widely used in fermentation, maturation, and water removal operations in organic fertilizer plants, sludge and garbage plants, horticultural fields, and mushroom cultivation plants. Suitable for aerobic fermentation, it can be used in conjunction with solar fermentation chambers, fermentation tunnels, and transfer machines. When used in conjunction with a mobile device, it can achieve the function of multiple slots for one machine. The fermentation tunnel equipped with it can both continuously discharge and batch discharge, with high efficiency, stable operation, durability, and even flipping and throwing. The control cabinet is centrally controlled and can achieve manual or automatic control functions. The shovel is sturdy and durable, and has the function of crushing and mixing materials. The limit stroke switch plays a limiting role.
Technical Data
SFP(normal type);SFPY(draulic type)
| Model | Main power | Walking power | Shifting motor | Hydraulic Pump motor | Turning depth |
| SFP3m | 11 | 0.75 | 1.1 | NO | ≤1.2m |
| SFP4m | 15 | 0.75 | 1.1 | NO | ≤1.2m |
| SFP5m | 15 | 0.75 | 1.5 | NO | ≤1.2m |
| SFP6m | 18.5 | 1.1 | 1.5 | NO | ≤1.2m |
| SFPY4m | 7.5*2 | 0.75 | 1.1 | 4 | ≤1.2m |
| SFPY5m | 11*2 | 0.75 | 1.5 | 4 | ≤1.2m |
| SFPY6m | 15*2 | 1.1 | 1.5 | 4 | ≤1.2m |
Note: the parameters above only for reference, will revise accordingly from different materials and projects.
