SOLUTION
Bulk blending fertilizer, also known as Blended fertilizer or BB fertilizer or dry mixed fertilizer, is a chemical fertilizer that contains any two or three of the three nutrients of nitrogen, phosphorus, and potassium. It is made from single fertilizer or compound fertilizer by simple mechanical mixing, and there is no significant chemical reaction during the mixing process.

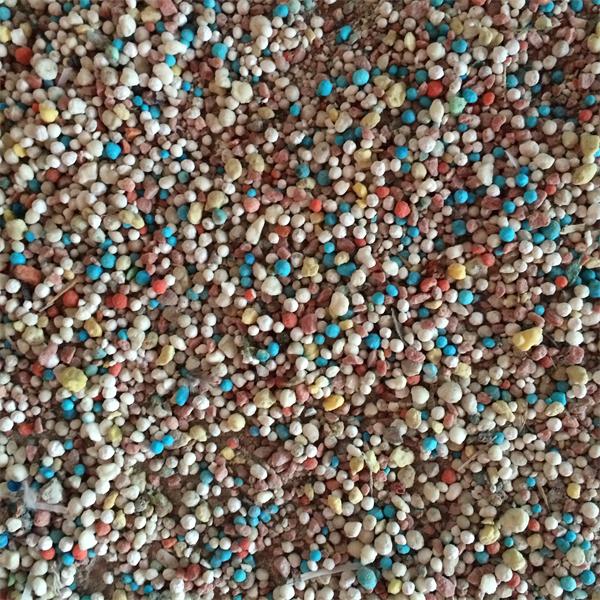

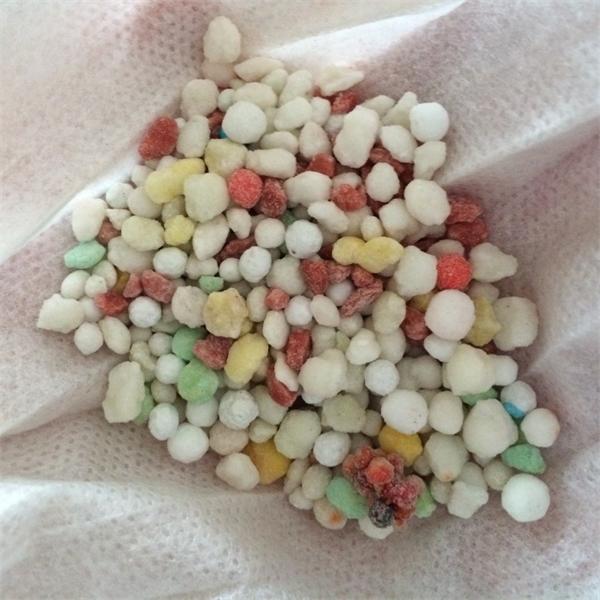

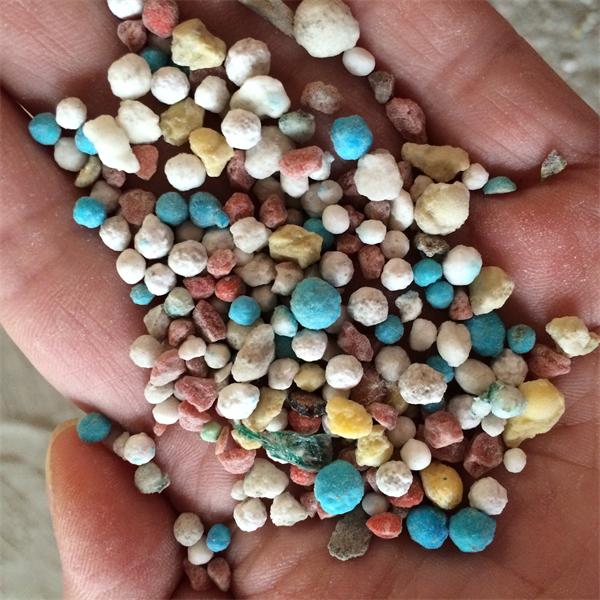

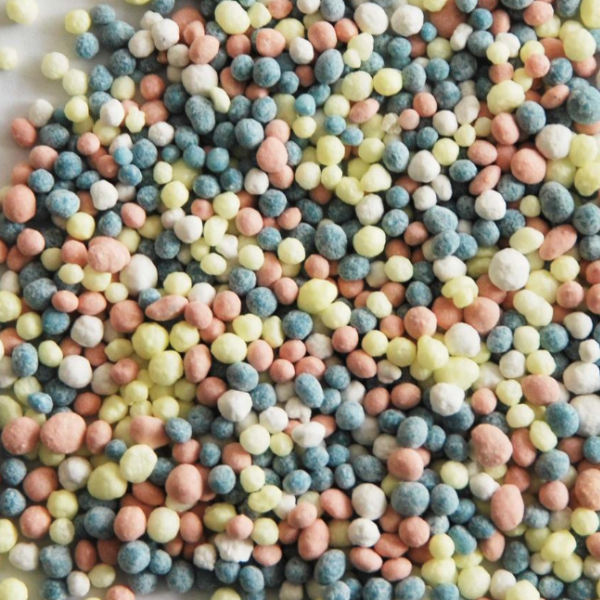

Appearance: Granular, without mechanical impurities
It is widely used for irrigation and fertilization of vegetables and flowers, various fruit trees, and field crops in greenhouses, maintenance of landscaping plants, maintenance of golf courses, and even home greening plants.

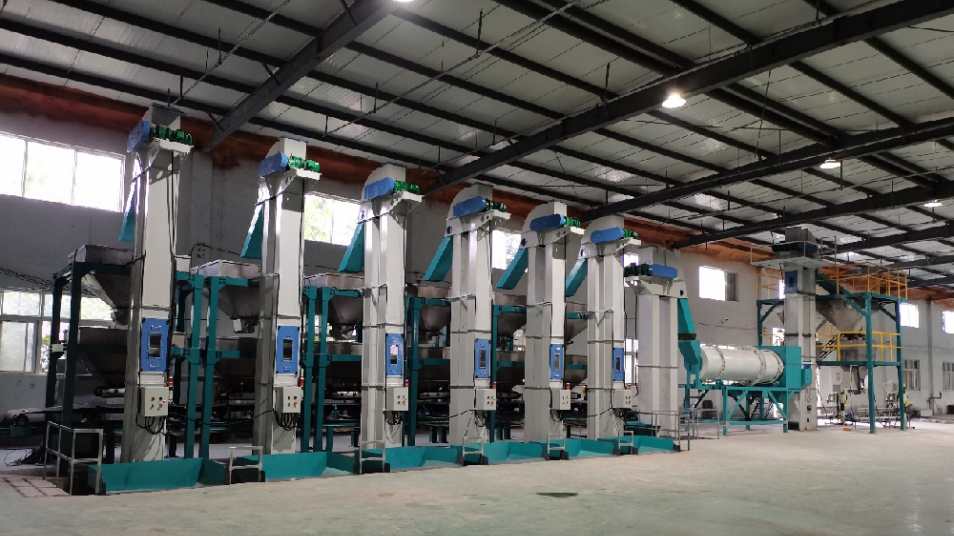

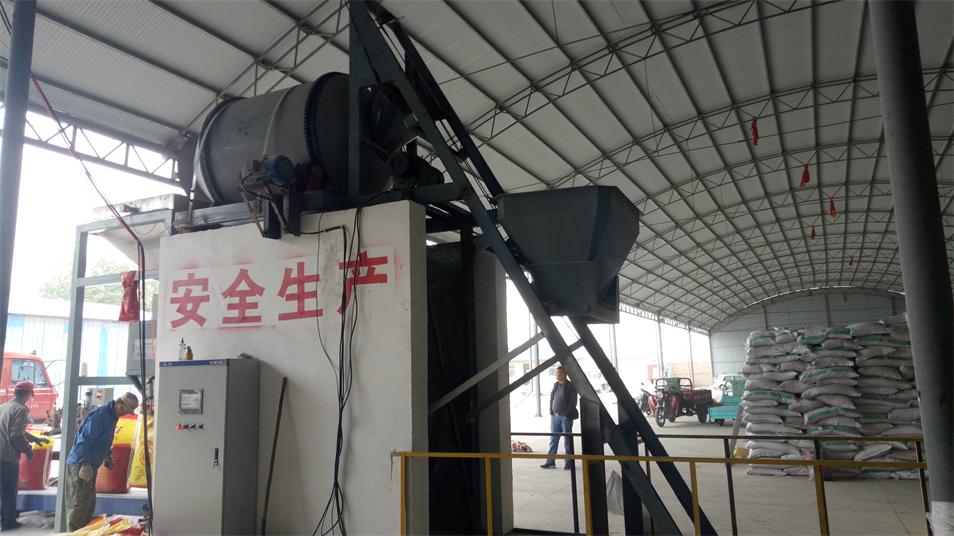

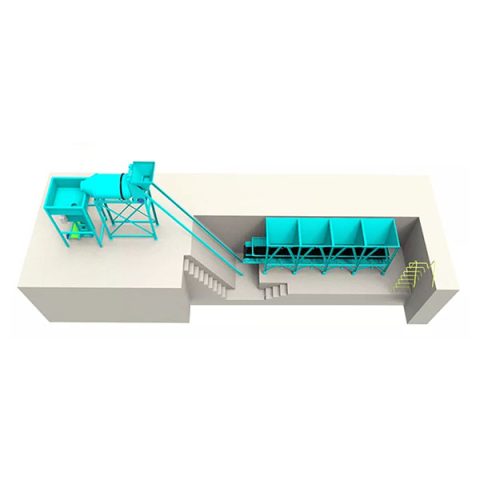

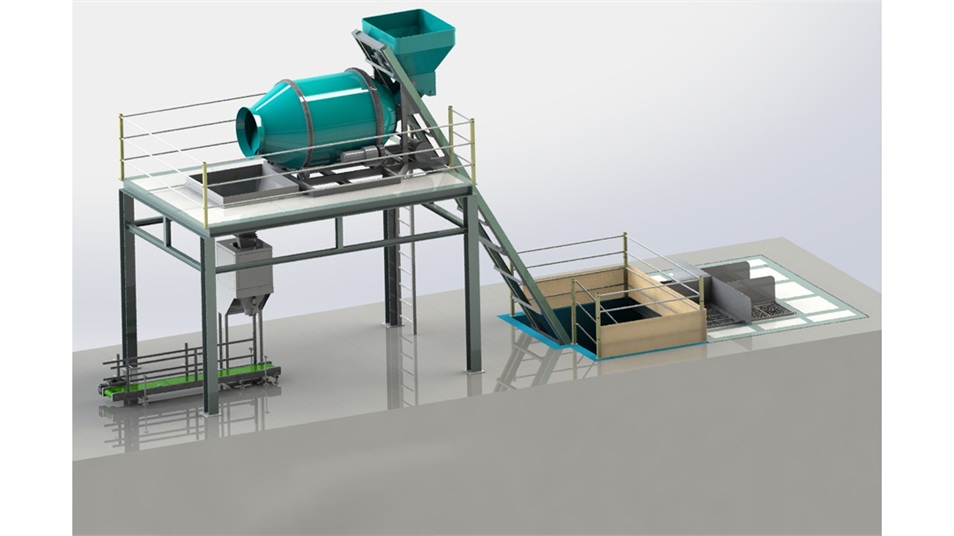

The main machines for the blended fertilizer production line: automatic batching system, blending machine, packing machine, PLC controller, and belt conveyor to connect each machine.
| Item | Indicators |
| Macronutrient (N+P2O5+K2O)/% | ≥35% |
| water-soluble phosphorus to available phosphorus/% | ≥60% |
| Moisture content/% | ≤2% |
| Size(2-4mm)/% | ≥70% |
| No. | Types of materials | Main Raw materials list |
| 1 | Nitrogen | Urea,Ammonium sulphate, Ammonium chloride, Ammonium nitrate, liquid nitrogen. Phosphorus nitrate,etc |
| 2 | Phosphorus | MAP (Monoammonium phosphate), DAP(diammonium phosphate),Potassium dihydrogen phosphate(50:42), ammonium polyphosphate, ammonium pyrophosphate, ammonium nitrophosphate(26:13), potassium pyrophosphate, urea phosphate(61%), etc |
| 3 | Potassium | MOP(Potassium chloride),SOP(potassium sulfate),Potassium nitrate, potassium phosphate, potassium hydroxide, Potassium magnesium sulfate, etc |
|
No. |
Processes |
Machines |
Function of machines |
|
1 |
Batching process |
Automatic batching system |
Ratio raw materials by formula |
|
2 |
Mixing and blending process |
Ribbon mixer |
Mix granules evenly |
|
3 |

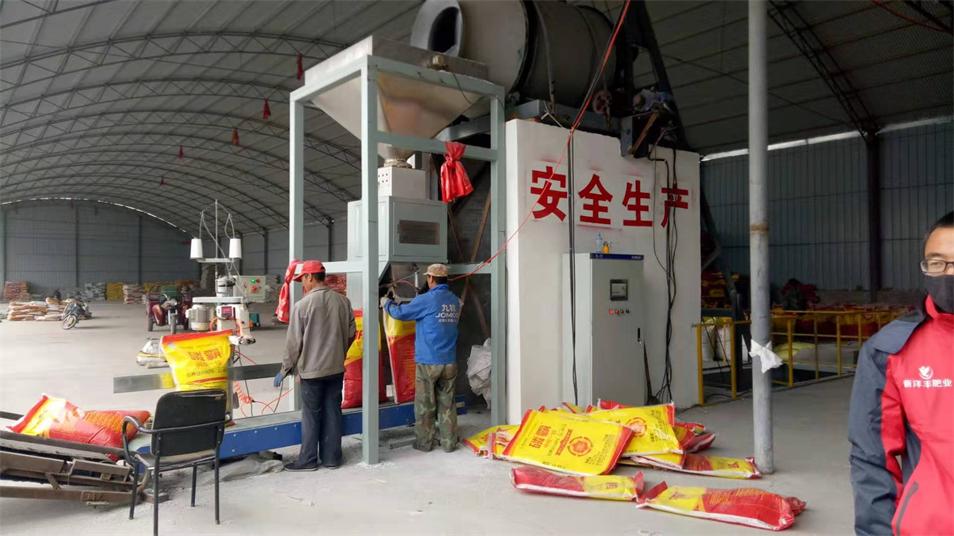

Packaging process |
Air compressor |
Generate air source to packaging machine |
|

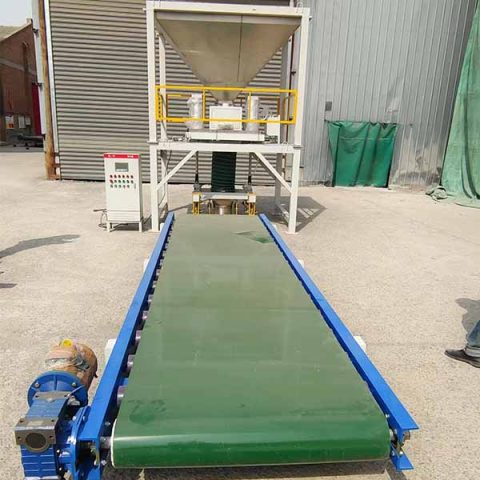

Packaging machine |
Package fertilizer granules into bags |
||
|
5 |
Delivering process |
Bucket elevator |
Connect each machine, and deliver the granules to next process |
|
Belt conveyor |
|||
|
6 |
Controlling process |
PLC controller |
Control all machines |
|
7 |
Stock process |
Hopper/Silo |
Stock materials in each process(if need) |
We pride ourselves on our perfect ability to manufacture fertilizer production equipment and provide comprehensive one-stop service to meet all your needs.
